Santim SC-1
Supports every classic CAN and CAN FD vehicle on the market. Compatible with new models the day they launch. No waiting, no requests.
[ At a glance ]
Networks
Classic CANCAN FD
Supply range
7,5–32 V DC
Operating temperature
−40 … +85 °C
Ingress protection
IP40
Nominal bitrates
83,3 kbit/s – 1 Mbit/s
CAN interface
- Supported networks
- Classic CAN and CAN FD
- Classic CAN
- CAN 2.0A · CAN 2.0BISO 11898-1
- Identifiers
- 11-bit standard and 29-bit extended
- CAN FD
- Up to 64 data bytes per frameISO 11898-1:2015
- Physical layer
- High-speed CANISO 11898-2
- Nominal bitrates1
- 83,3 kbit/s
- 125 kbit/s
- 250 kbit/s
- 500 kbit/s
- 1 Mbit/s
- CAN channels
- 1
Connectivity
- Wireless
- Bluetooth Low EnergyPairs with SConnect
- Wired
- USB-Cmicro-USB on earlier hardware revisions
Power
Protection
- Outputs
- Short-circuit protected
Environment
- Ingress protection
- IP405For dry locations inside the cabin
- Operating temperature
- −40 … +85 °C
Status indicators
Three LEDs on the front face, each labelled on the housing.
LED reference and troubleshooting- LEDs
- POWERSupply present · Green
- CANCAN activity · Yellow
- ERRORFault indication · Red
Companion app
- App
- SConnectFor authorised Santim service partners
- Platforms
- Android
- iOS
- Download
- Google PlayAndroid version
Design
- Views

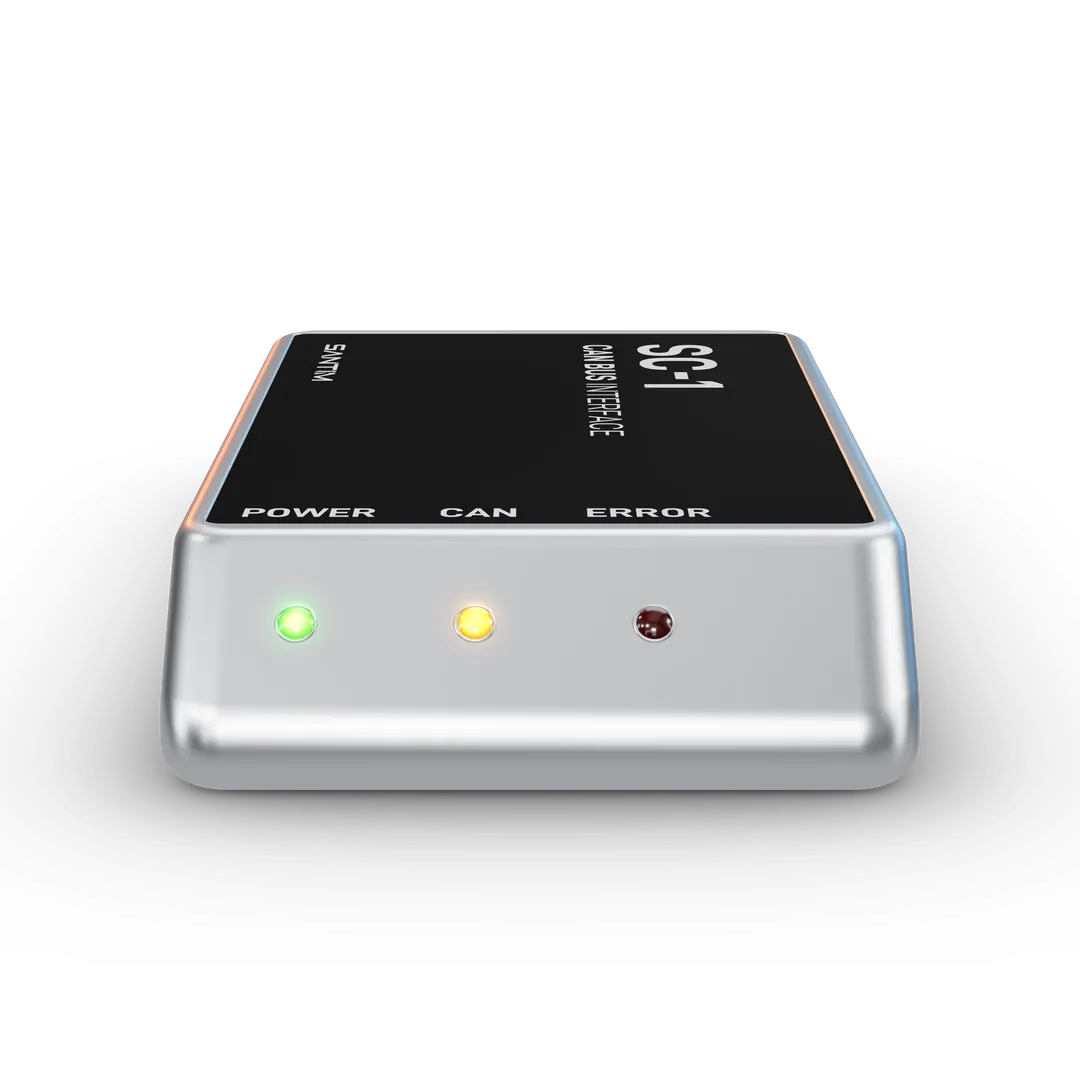

[ Front ]01

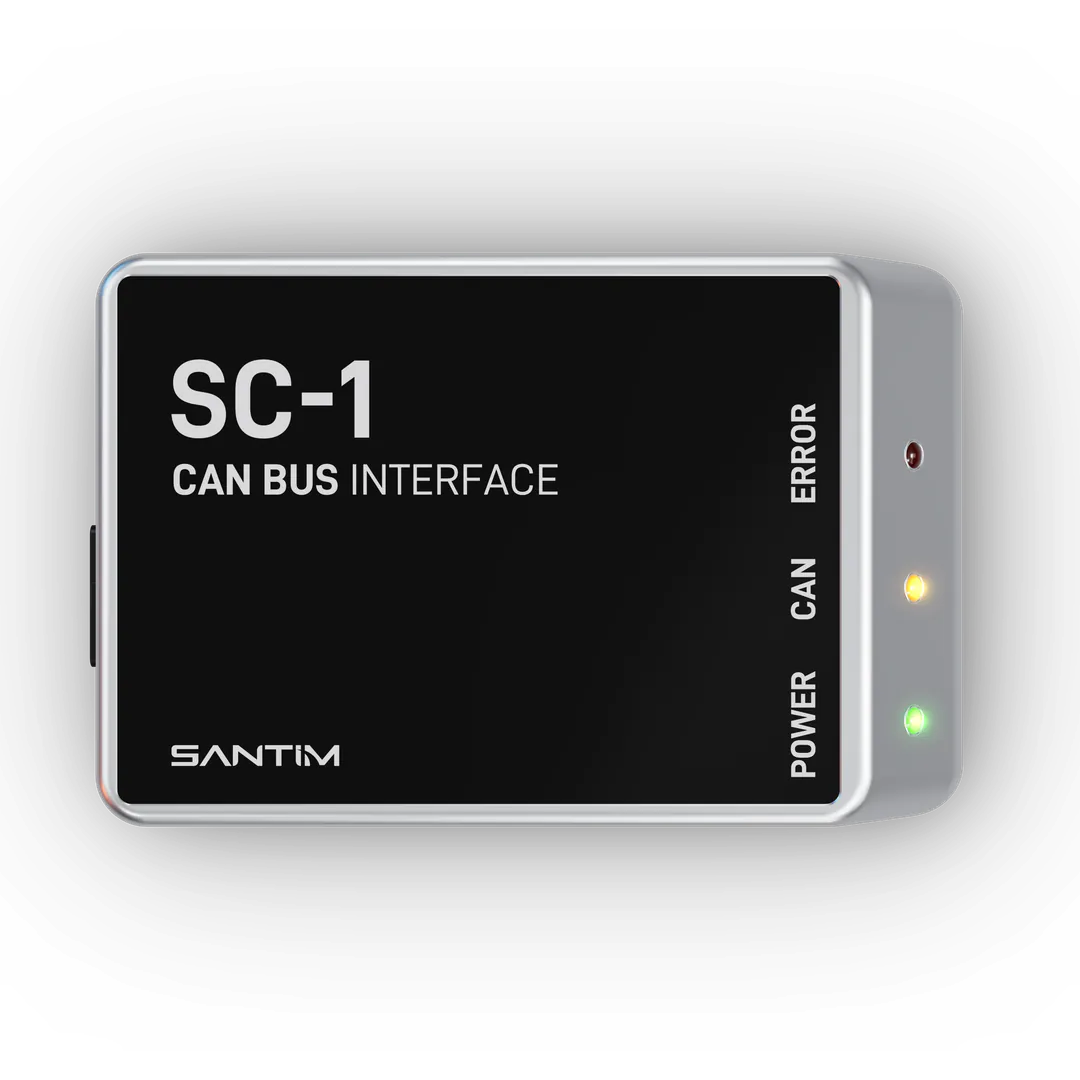

[ Top ]02

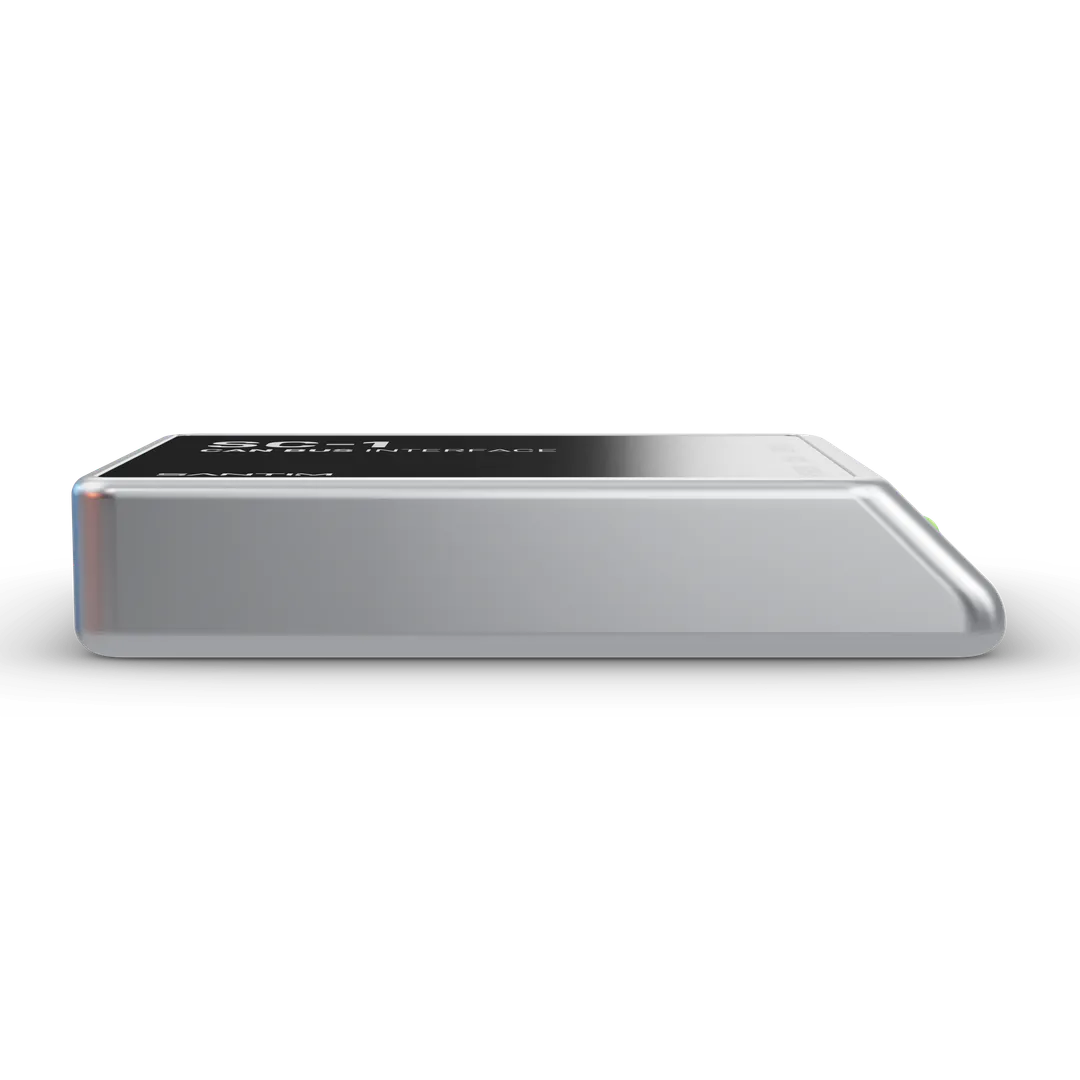

[ Side ]03
Footnotes
- 1Nominal (arbitration-phase) bitrates.
- 2Fit the fuse on the constant +30 feed, as close to the tap point as practical.
- 3Maximum values in normal operation, with no load on the outputs.
- 4Maximum values in sleep mode.
- 5Not protected against water: install in a dry place inside the cabin.
Values refer to the current hardware revision and may change as the product evolves.
SC-1 vs conventional CAN interfaces
The same job, a different model. This is what changes when the device supports every vehicle from day one.
Vehicle support
- Santim SC-1
- Every classic CAN and CAN FD vehicle
- Conventional CAN interfaces
- Per-vehicle support lists
New models
- Santim SC-1
- Compatible from day one
- Conventional CAN interfaces
- Wait for a list or software update
Support requests
- Santim SC-1
- None needed
- Conventional CAN interfaces
- A ticket for every unsupported vehicle
CAN FD
- Santim SC-1
- Supported
- Conventional CAN interfaces
- Often not supported
Companion app
- Santim SC-1
- SConnect for Android and iOS
- Conventional CAN interfaces
- PC tools, or none
Installation guidance
- Santim SC-1
- In SConnect and online
- Conventional CAN interfaces
- Paid guides
Compared with typical per-vehicle CAN interfaces on the market. Individual products vary.
